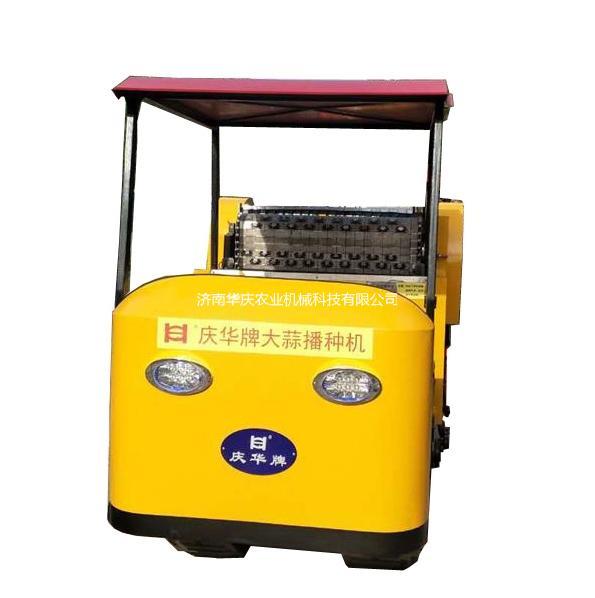

Garlic Seeder

Qinghua garlic seeder can sow in 2-3 rows at the same time. The sowing plant spacing is 8-18 cm, and the row spacing is 6-9 rows can be customized. Qinghua garlic seeder is suitable for a variety of seeders in different soils, and the sowing depth can be adjusted according to customer requirements. The sowing efficiency of Qinghua garlic seeder can reach 1-3 mu per hour.

Bed castings are large-scale castings, generally using resin sand, lost foam solid mold casting. The material is made of high-quality and delicate gray cast iron HT200-HT300, with precise proportioning and higher tensile and bending strength, so that you can purchase without worries. The popular heat treatment process reduces the stress and deformation of castings, improves plasticity, facilitates cutting or pressure processing, and tends to be more stable for long-term use.

Keywords:

Garlic Seeder

Garlic Seeder

Categories:

Products Introduction

Introduction of garlic seeder:

Qinghua garlic seeder can sow in 2-3 rows at the same time. The sowing plant spacing is 8-18 cm, and the row spacing is 6-9 rows can be customized. Qinghua garlic seeder is suitable for a variety of seeders in different soils, and the sowing depth can be adjusted according to customer requirements. The sowing efficiency of Qinghua garlic seeder can reach 1-3 mu per hour.

Technical Parameters:

Product Name

Kinghua Standing Garlic Seeder

Product Model

1m crawler self-propelled

1.5m crawler self-propelled

2-meter crawler self-propelled

2m crawler rotary tiller

Positive bud percentage/%

95%

95%

95%

95%

Sowing width/m

1m

1.5m

2m

2m

line spacing/cm

Customizable

Customizable

Customizable

Customizable

Space between plants/cm

Customizable

Customizable

Customizable

Customizable

Sowing depth/cm

Adjustable

Adjustable

Adjustable

Adjustable

Power

8 hp

14 hp

28 hp

49 hp

Efficiency

0.8 mu/h

1.5 mu/h

2 mu/h

3 mu/h

Product size/mm

2900*1500*1800

3300*2300*1700

3400*2700*1600

4100*2700*1800

Product weight/kg

1000

1500

2000

2600

Features of this machine:

The sowing speed is fast and the uniformity is good, which can ensure the uniformity of plant spacing and row spacing, consistent depth and neat seedling emergence.

Save seeds, reduce costs, reduce labor intensity, increase farmers' income, and the efficiency of mechanical sowing can be more than twice that of manual labor.

The planting rate of the machine is high, the fuel is about 1.5 liters per hour, and 2-3 mu of land is sown per hour. The planter itself is powered by a diesel engine. The distance between plants and rows can be customized to meet the operation requirements of different soil qualities all over the country.
