Garlic Clove Machine
Bed castings are large-scale castings, generally using resin sand, lost foam solid mold casting. The material is made of high-quality and delicate gray cast iron HT200-HT300, with precise proportioning and higher tensile and bending strength, so that you can purchase without worries. The popular heat treatment process reduces the stress and deformation of castings, improves plasticity, facilitates cutting or pressure processing, and tends to be more stable for long-term use.
Keywords：
Garlic Clove Machine
Categories：
Products Introduction

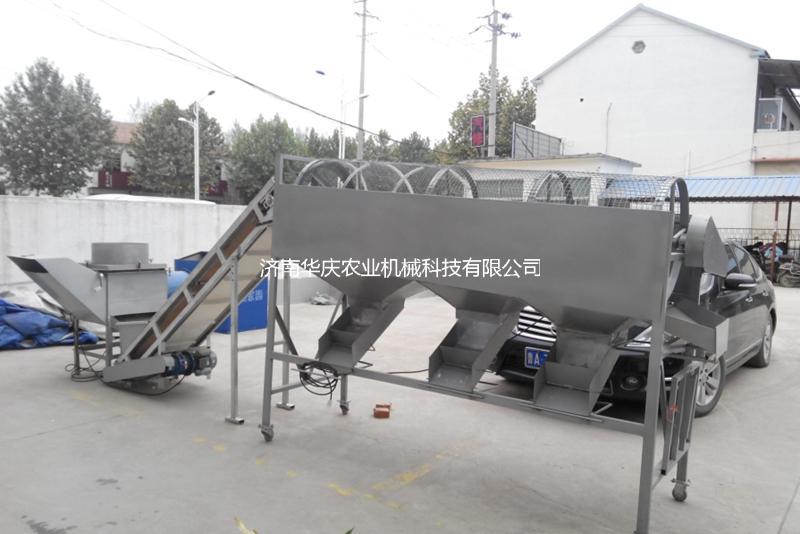

Garlic sorting machine introduction:
The garlic splitter is made of high-elastic silicone plate, using the principle of kneading, equipped with a high-performance motor and a belt drive system, the gap between the silicone plates can be adjusted according to the size of the garlic during work, and the splitting rate is over 95%, which can remove the garlic Impurities. There are many models of this machine, with an output of about 1500 kg per hour. The garlic splitter uses a silicone plate, which simulates the action of hand peeling, so that the garlic can achieve the effect of splitting, and the gap between the rubber plates can be adjusted. The size of the garlic is uniform. It can be used, and has the advantages of low garlic clove damage rate and high clove split rate. The equipment is easy to operate, with a built-in fan, and the garlic skin, garlic stem, and garlic cloves are automatically separated. The separated garlic cloves are transported to the screening machine through the conveyor. The rotary screen sorter has a separate power motor, which is suitable for users with large processing volume. One person can use it alone, it has the characteristics of practicality, power saving, easy cleaning, high production efficiency and low failure rate.
Technical Parameters:
Voltage: 220v 380v
Weight: 320kg
Power: 4.5kw)
Output: 1000-1500kg /h
Dimensions of splitter mm: 1600*900*1200
Dimensions of feeding machine mm: 2500*500*2300
Dimensions of rotary sieve mm: 3300*1000*1860
Overall dimensions mm: 6500*1500*1850
Bed castings are large-scale castings, generally using resin sand, lost foam solid mold casting. The material is made of high-quality and delicate gray cast iron HT200-HT300, with precise proportioning and higher tensile and bending strength, so that you can purchase without worries. The popular heat treatment process reduces the stress and deformation of castings, improves plasticity, facilitates cutting or pressure processing, and tends to be more stable for long-term use.
